This model is suitable for packing of Rectangular, Square or Round Plain Biscuit in "Standing On Edge Condition" for higher output with additional volumetric Double Feeding attachment which precisely load the required stack length of biscuits into the main feeding conveyor. During this process Nylon Lugs carry the biscuits with wrapping material to the main wrapping unit through the easy adjustable folding box through the pair of hot body sealing rollers for center seal. The final end sealing & cutting is done by the rotating hot crimpers. The gusseting arrangement can be provided by newly designed nylon lugs if required on all H/60 Models. The out put of the machine 80 to 175 pkts/min. depending upon Product Size, Shape, Stack Length, Weight, Film Quality, Thickness & Operator Skill etc and feeding skill etc.

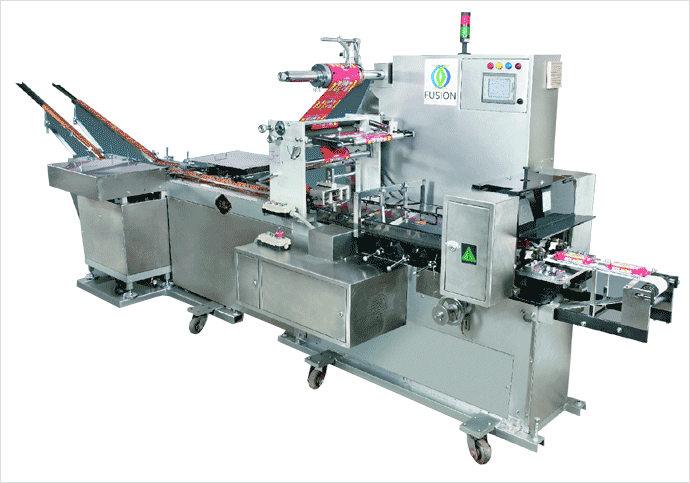

MODEL : FUSION (NEW TECHNOLOGY):
Above machine model can be advanced with incorporating this New Fusion Technology of PLC/Touch Screen/Servo Motor to achieve higher production output and also are easy to operate and maintain with low maintenance cost.
Machine speed - 80 to 175 pkt/minute.
Depending upon Products size, shape, Film quality, etc
Sample Pack :
Maximum Product Size
60 mm Dia
30 mm Dia
Maximum Width of Product
Width of Product
Maximum Stack Length
Maximum Speed ( Depending upon type, product size, stack length )
MODEL : H/60/A/S 100 Packets per min. MODEL : H/60/A/S FUSION 175 packets per min.
1) Power = 440 Volts 3 Phase 2) Power = 440 Volts 3 Phase Optional : Touchscreen / Servo Motor / PLC can be incorporated in all machine.
1.5 H.P. Motiv 2.0 K.W.Heating
1) MACHINE WEIGHT ( APPROX )
2) MACHINE DIMENSION ( APPROX )
5800 mm/ 230 inch
1250 mm/ 50 inch
2000 mm/ 50 inch
Heat sealable material such as 30 to 40 micron polyester poly/pearlised/metallised B.O.P.P. Heat sealable B.O.P.P. & Aluminium foil, paper poly and other common composite films with inner heat sealable layer.
