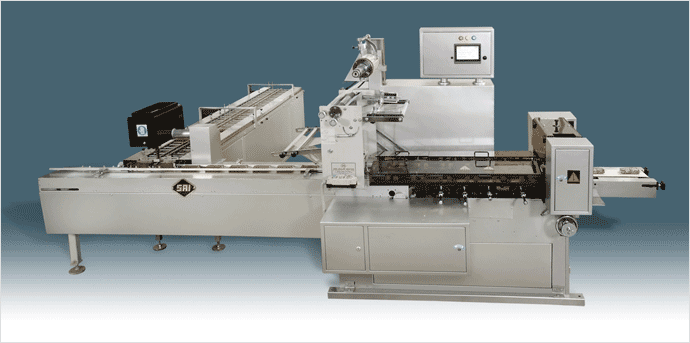

This model is specially designed to pack Rectangular, Square, Round, Cream Sandwich Biscuits in "Standing On-Edge" Condition. Biscuits are manually fed into the ‘L’ type conveyor & transferred smoothly, by specially designed single pusher mechanism into the main feeding conveyor. From the main-feed conveyor, biscuits are simultaneously carried by the Nylon Lugs through the adjustable folding box along with wrapping material for center seal, by the pair of hot sealing rollers. The end sealing & cutting is done by the rotating hot crimpers. The Out put of the machine is 60 to 120 pkts/min. depending on the Product Size, Shape, Stack Length, Operator Skill, Film Quality & Thickness etc. This machine is also available with straight long biscuit feeding conveyor.
MODEL : FUSION (NEW TECHNOLOGY):
Above machine model can be advanced with incorporating this New Fusion Technology of PLC/Touch Screen/Servo Motor to achieve higher production output and also are easy to operate and maintain with low maintenance cost. Machine speed – 60 to 120 pkt per minute
Depending upon Products size, shape, Film quality, etc
MODEL : H/60/S :
This machine is equipped with Double cream sandwich Biscuit stack pushing mechanism. The Output of machine is 80 to 130 pkt /min depending upon Biscuit size, stack length, film quality /
Thickness, operator/ feeding skill etc.
Sample Pack :
Maximum Product Size
60 mm Dia
Minimum Product Size
30 mm Dia
Maximum Width of Product
Minimum Width of Product
Maximum Stack Length
Minimum Stack Length
Maximum Speed ( Depending upon type, product size, stack length )
MODEL : H/60 80 packets /min. MODEL : H/60/FUSION 120 packets/min.
1) MACHINE WEIGHT ( APPROX )
2) MACHINE DIMENSION ( APPROX )
3000 mm/ 120 inch
1100 mm/ 45 inch
2000 mm/ 80 inch
1) Power = 440 Volts 3 Phase 2) Power = 440 Volts 3 Phase Optional : Touchscreen / Servo Motor / PLC can be incorporated in all machine.
1.5 H.P. Motiv 2.0 K.W.Heating
Heat sealable material such as 30 to 40 micron polyester poly/pearlised/metallised B.O.P.P. Heat sealable B.O.P.P. & Aluminium foil, paper poly and other common composite films with inner heat sealable layer.
