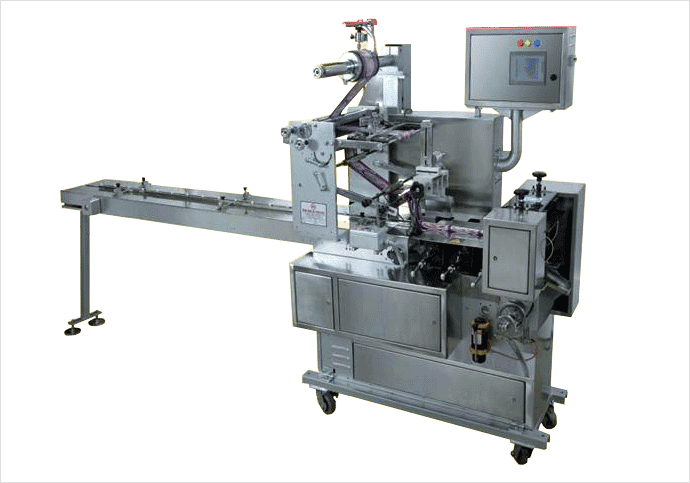

This model is suitable to pack Plain & Cream Biscuits in Tray & Biscuits on Pile, (Canteen Pack), Cake, Soap, Bakery Products, Wafer Biscuits, Surgical Cotton Roller, Scrub Pad by Hand Feeding. All the components used in the machine are designed and manufacturered as per strict international standards. The Out put of the machine is 50 to 200 pkts/min. depending on the Product Size, Stack Length, Shape, Operator Skill, Film Quality & Thickness etc.
MODEL : FUSION (NEW TECHNOLOGY):
Above machine model can be advanced with incorporating this New Fusion Technology of PLC/Touch Screen/Servo Motor to achieve higher production output and also are easy to operate and maintain with low maintenance cost.
Machine speed - 50 to 200 pkt/minute.
Depending upon Products size, shape, Film quality, etc
Maximum Product Size
60 mm Dia
Minimum Product Size
Maximum Width of Product
Minimum Width of Product
Maximum Stack Length
Minimum Stack Length
Maximum Speed ( Depending upon type, product size, stack length )
MODEL : HSC/60 120 Packets per min. MODEL : HSC/60/FUSION Speed 200 Packets per min. ( Depending upon no.of pile & biscuits on pile )
1) Power = 440 Volts 3 Phase 2) Power = 440 Volts 3 Phase Optional : Touchscreen / Servo Motor / PLC can be incorporated in all machine.
1.0 H.P. Motiv 1.5 K.W.Heating
1) MACHINE WEIGHT ( APPROX )
2) MACHINE DIMENSION ( APPROX )
3800 mm/ 150 inch
1100 mm/ 45 inch
1500 mm/ 60 inch
Heat sealable material such as 30 to 40 micron polyester poly/pearlised/metallised B.O.P.P. Heat sealable B.O.P.P. & Aluminium foil, paper poly and other common composite films with inner heat sealable layer.
