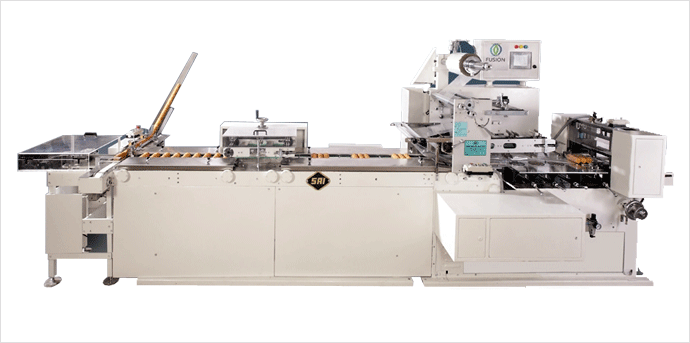

This model is suitable to wrap 3 or 4 stack (Family Pack) of biscuit. The machine is equipped with a volumetric feeding arrangement, to feed single stack of plain biscuits. The single stack of biscuits are then grouped together in 3 or 4 stack form and then the guide rods carry the rows of biscuits together into the forming box for final sealing and cutting operation. The machine is equipped with A.C Drive unit for smooth functioning and air type gusseting arrangement. The machine also packs Cream Sandwich Biscuits with manual feeding. Out put of the machine is 20 to 40 pkts/minute depending on the Product Size, Shape, Stack Length, Operator Skill, Film Quality, and Thickness & No. of Rows or Lines etc.
MODEL : FUSION (NEW TECHNOLOGY):
Above machine model can be advanced with incorporating this New Fusion Technology of PLC/Touch Screen/Servo Motor to achieve higher production output and also are easy to operate and maintain with low maintenance cost.
Machine speed: - 20 to 40 pkt/minute.
Depending upon type of Biscuit, Depending on no. of Stack (Rows), Stack length, Film quality, etc.
Sample Pack :
Maximum Product Size
60 mm Dia
30 mm Dia
Maximum Width of Product
Manimum Width of Product
Maximum Stack Length
Manimum Stack Length
Maximum Speed ( Depending upon type, product size, stack length )
MODEL : H/FP/30 30 Packets per min MODEL : H/FP/30/FUSION 40 Packets per min
1) Power = 440 Volts 3 Phase 2) Power = 440 Volts 3 Phase Optional : Touchscreen / Servo Motor / PLC can be incorporated in all machine.
1.5 H.P. Motiv 2.0 K.W.Heating
1) MACHINE WEIGHT ( APPROX )
2) MACHINE DIMENSION ( APPROX )
5000 mm/ 196 inch
1300 mm/ 50 inch
2000 mm/ 80 inch
Heat sealable material such as 30 to 40 micron polyester poly/pearlised/metallised B.O.P.P. Heat sealable B.O.P.P. & Aluminium foil, paper poly and other common composite films with inner heat sealable layer.
